Mileflex™ TPU Lay Flat Hose

Short Description:

Mileflex™ TPU Hose is a high-performance, lightweight, and highly flexible hose engineered for efficient fluid transfer across agricultural, mining, and industrial applications. Manufactured from premium thermoplastic polyurethane (TPU), it delivers exceptional resistance to abrasion, chemicals, and UV exposure, ensuring long-lasting durability even in demanding environments. Its lay-flat design allows for easy handling, convenient transportation, and space-saving storage.

CONTACT NOW

Basic Information

Structure

Data Sheet

Basic Information
Size: 1"- 24"
Standard Color: (other colors available upon request)

Length: Up to 400m, (customized lengths available)
Application: Dewatering
Advantages: High-pressure performance, Corrosion-resistant, Highly abrasion-resistant, Lightweight and portable, High tensile strength

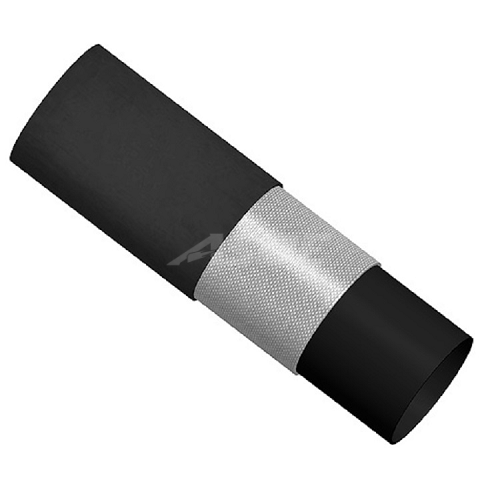

Structure
Inner Tube: Thermoplastic Polyurethane (TPU)
Outer Cover: Thermoplastic Polyurethane (TPU)
Reinforcement: Circular-woven polyester jacket
Operating Temperature Range: -60°F to 176°F (-50°C to 80°C)

Part No.	ID		Thickness	Weight	Working pressure	Bursting pressure	Tensile Strength
	Inch	mm	mm	kg/m	PSI/bar	PSI/bar	KG
MLPU150	1-1/2"	39+1.5	2.6	0.45	300/21	900/63	5800
MLPU200	2"	51+1.5	3.0	0.70	300/21	900/63	5800
MLPU250	2-1/2"	64.5+2.0	3.0	0.75	300/21	900/63	6100
MLPU300	3"	76+2.0	3.0	1.07	250/17	750/51	9900
MLPU400	4"	104+2.0	3.5	1.45	250/17	750/51	18200
MLPU600	6"	155+2.0	4.0	2.30	200/14	600/42	27100
MLPU800	8"	205+3.0	4.5	3.50	215/15	645/45	45800
MLPU1000	10"	254+3.0	4.2	3.80	200/14	600/42	57800
MLPU1200	12"	305+3.0	4.3	4.60	200/14	600/42	78300
MLPU1400	14"	355+3.0	4.3	5.25	200/14	600/42	92100
MLPU1600	16"	405+3.0	4.3	6.20	150/10	450/30	101800
