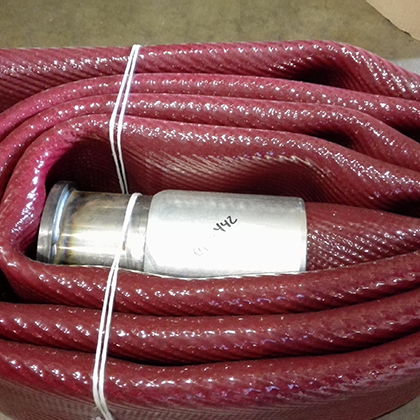

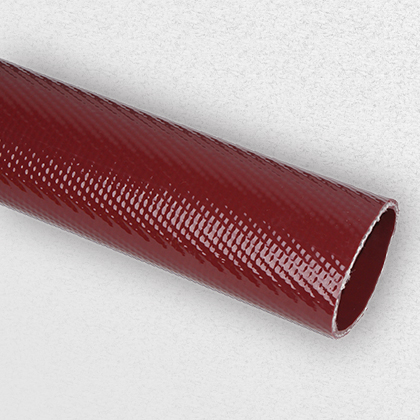

Concreflex™ TPU Lay Flat Hose

Short Description:

Concreflex™ TPU Hose is specially designed for cement and concrete pouring applications. It features exceptional flexibility and a lightweight construction, allowing for easy handling and improved portability on construction sites. Engineered for demanding environments, the hose offers outstanding durability and reliable performance during continuous operations. Its flexible design enables smooth and efficient concrete pumping, ensuring stable flow and minimizing handling difficulties during cement placement. Concreflex™ TPU Hose provides a practical and dependable solution for construction projects requiring efficient and controlled cement or concrete transfer.

CONTACT NOW

Basic Information

Structure

Data Sheet

Basic Information
Size: 3"-5"
Standard Color: (other colors available upon request)

Length: Up to 400m, customized lengths available
Application: Concrete Placement
Advantages: High pressure, Corrosion-resistant, highly wear-resistant, lightweight and portable, high tensile streng High wear resistance, Lightweight and portable, High tensile strength, High adhesion

Structure
Inner Tube: TPU (Thermoplastic Polyurethane)
Outer Cover: TPU (Thermoplastic Polyurethane)
Reinforcement: Circular-woven polyester jacket
Operating Temperature Range: -60°F to 176°F (-50°C to 80°C)

Data Sheet

Concreflex ^TM

Part No.	Norminal Size (ID)		Thickness	Weight	Working pressure	Bursting pressure	Tensile Strength
	Inch	mm	mm	Kg/m	PSI/bar	PSI/bar	kg
CF1PU300	3"	76	4.5±0.5	1.4	925/43	1850/126	18,700
CF1PU400	4"	102	6.0±0.5	2.73	925/43	1850/126	38,300
CF1PU500	5"	125	6.0±0.5	3.3	750/50	1500/100	48,200

Concreflex^TM HP

Part No.	Norminal Size (ID)		Thickness	Weight	Working pressure	Bursting pressure	Tensile Strength
	Inch	mm	mm	Kg/m	PSI/bar	PSI/bar	kg
CF2PU300	3"	76	5.5±0.5	1.55	1250/85	2500/170	24,000
CF2PU3501	3-1/2"	90	6.0±0.5	2.15	1250/85	2500/170	32,100
CF2PU3502	3-1/2"	90	4.5±0.5	1.74	1250/85	2500/170	32,100
CF2PU400	4"	102	6.0±0.5	2.9	1250/85	2500/170	38,300
CF2PU500	5"	125	6.0±0.5	3.3	1075/75	2150/150	62,000
