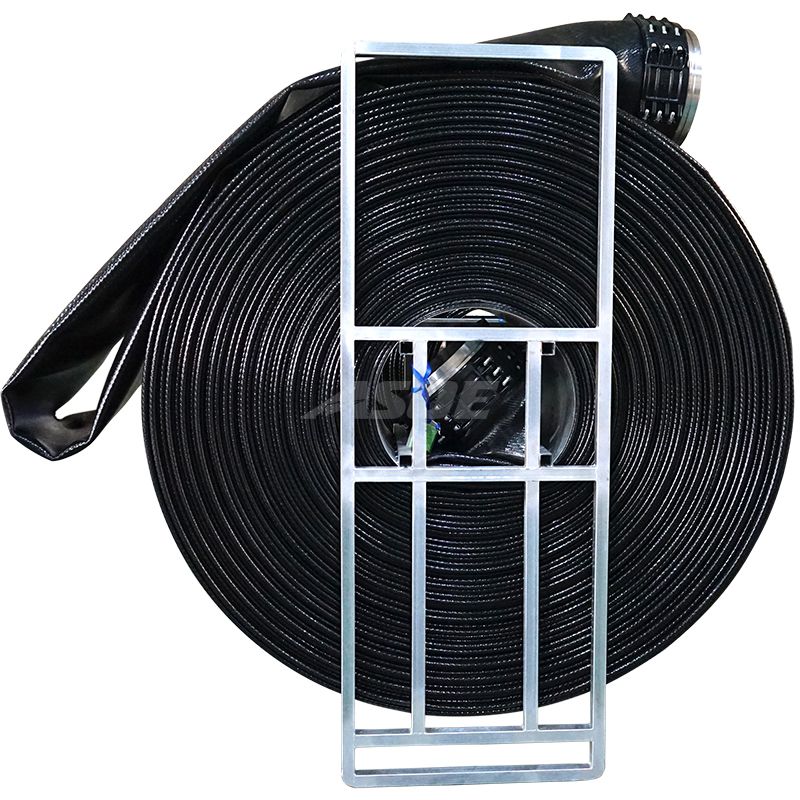

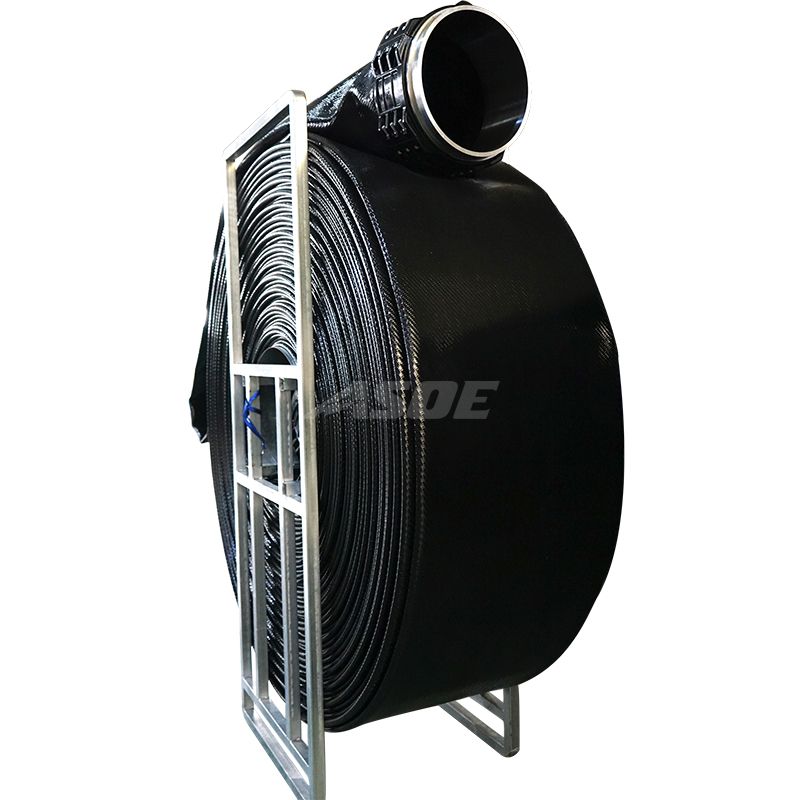

Manureflow™ Supply TPU Lay Flat Hose

Short Description:

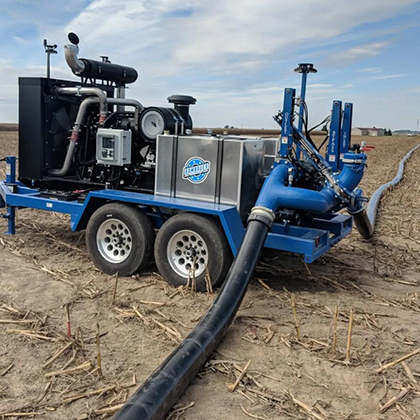

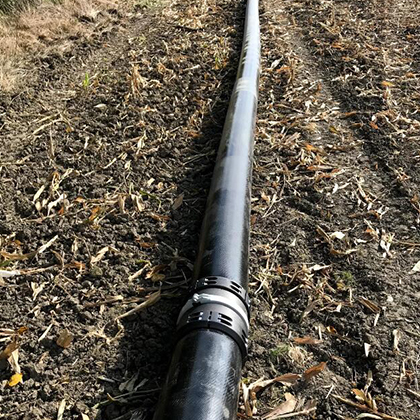

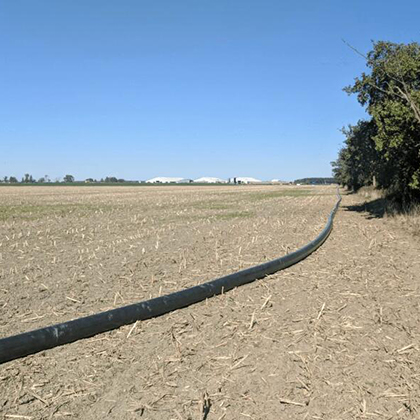

ManureFlow™ Supply TPU Lay Flat Hose is specifically engineered for efficient manure transfer in agricultural applications. Designed for demanding operating conditions, it offers high tensile strength, outstanding abrasion resistance, and superior flexibility for reliable performance in the field.

The hose provides excellent resistance to hydrolysis, UV exposure, ozone, and harsh weather conditions, ensuring long-term durability and consistent operation. Its lightweight lay-flat construction enables easy handling, rapid deployment, and convenient storage, making it an ideal solution for modern manure management systems.

CONTACT NOW

Basic Information

Structure

Data Sheet

- Basic Information
- Size: 5"- 12"
  Standard Color: (other colors available upon request)

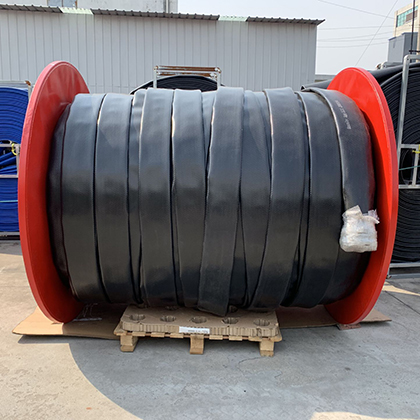

Length: Up to 400 meters (custom lengths available)
Application: Agricultural Irrigation
Advantages: Excellent flexibility , High abrasion resistance , Lightweight and portable design , Strong adhesion performance

Hose Structure

Inner Tube: Thermoplastic Polyurethane (TPU)
Outer Cover: Thermoplastic Polyurethane (TPU)
Reinforcement: Circular-woven polyester jacket
Operating Temperature Range: -60°F to 176°F (-50°C to 80°C)

Part No.	Nominal Size (ID)		Thickness	Weight	Working Pressure	Burst Pressure	Tensile Strength
	Inch	mm	mm	Kg/m	PSI/bar	PSI/bar	kg
MSPU500	5"	125	4.0	2.10	200/14	600/42	23600
MSPU600	6"	152.4	4.0	2.30	200/14	600/42	27100
MSPU700	7"	180	4.3	3.10	215/15	645/45	34800
MSPU800	8"	204	4.3	3.50	215/15	645/45	45800
MSPU1000	10"	254	4.2	3.80	200/14	600/42	57800
MSPU1200	12"	305	4.3	4.60	200/14	600/42	78300
MSPU1400	14"	355	4.3	5.25	200/14	600/42	92100
MSPU1600	16"	405	4.3	6.20	150/10	450/30	101800
