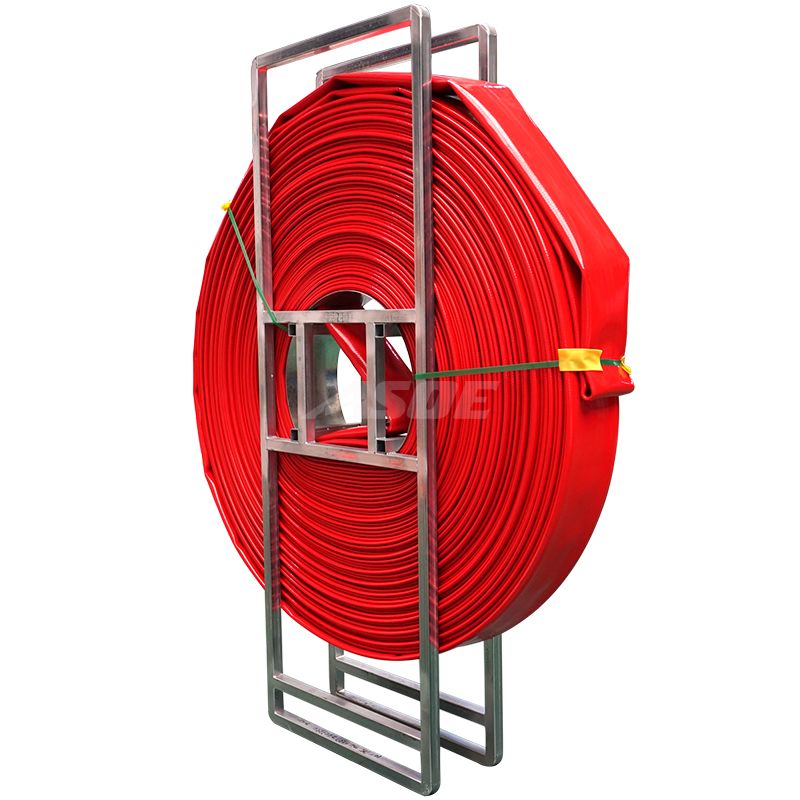

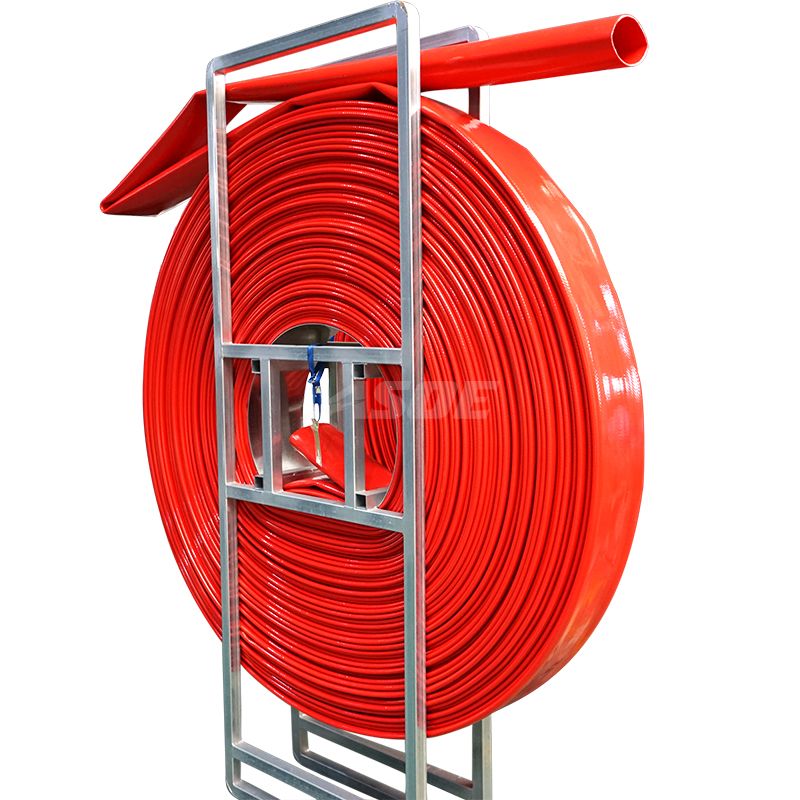

Manureflow™ Drag TPU Lay Flat Hose

Short Description:

ManureFlow™ Drag TPU Hose is a high‑performance solution designed specifically for agricultural manure‑drag irrigation. Engineered for exceptional durability, it offers high tensile strength, superior adhesive bonding, and outstanding abrasion resistance. The hose is hydrolysis‑resistant and provides strong protection against UV exposure, ozone, weathering, fungus, and manure. Its flexible construction minimizes kinking during operation, ensuring smooth and efficient flow. Lightweight and easy to handle, ManureFlow™ delivers long‑lasting reliability even in the most demanding farming environments.

CONTACT NOW

Basic Information

Structure

Data Sheet

Basic Information
Size: 2-1/2"- 8"
Standard Color: (additional colors available upon request)

Length: Up to 400m, customized lengths available
Application: Agriculture irrigation
Advantages: Exceptional wear resistance, Lightweight and portable, High tensile strength, Strong adhesion, Excellent kink resistance

Structure
Inner Tube: Thermoplastic Polyurethane (TPU)
Outer Cover: Thermoplastic Polyurethane (TPU)
Reinforcement: Circular-woven polyester jacket
Operating Temperature Range: -60°F to 176°F (-50°C to 80°C)

Part No.	Norminal Size (ID)		Thickness	Weight	Working pressure	Bursting pressure	Tensile Strength
	Inch	mm	mm	Kg/m	PSI/bar	PSI/bar	kg
MDPU250	2-1/2"	65	2.7	0.59	300/21	900/63	8,300
MDPU300	3"	76	3.2	0.95	250/17	750/51	9,800
MDPU400	4"	102	4.5	1.60	180/12	540/36	17,600
MDPU500	5"	125	4.2	2.05	150/10	450/30	29,400
MDPU550	5.5"	140	5.1	2.58	150/10	450/30	30,900
MDPU600	6"	152.4	5.6	3.18	150/10	450/30	33,900
MDPU700	7"	180	5.8	3.68	150/10	450/30	40,300
MDPU750	7.5"	190	6.0	4.10	150/10	450/30	47,800
MDPU800	8"	204	6.0	4.58	150/10	450/30	53,700
